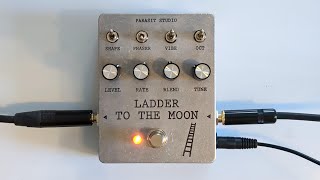

Ladder to the Moon kit

The Ladder to the Moon is a massive sounding monophonic CMOS based guitar synthesizer with two oscillators - A saw / square oscillator fixed at one octave down with two types of phaser modulation (smooth or stepped). The other oscillator is a tunable and tracking oscillator that can be tuned from about one octave down to one octave up and anywhere in between. It has a vibrato with a fixed rate.

This pedal works best with high output pickups. It is gated by nature of the CMOS logic. If you are using single coils and need more sustain, try a boost or compressor in front. To improve tracking, use the neck pickup on your guitar and play single notes closer to the 12th fret.

This kit is a creation by Parasitstudio.se in cooperation with Musikding.de. If you have any problem with the content of the kits like mising or wrong parts, please contact Musikding (Klaus) at kontakt@musikding.de. For any technical problem relating to building this project, please contact Fredrik at www.parasitstudio.se.

Here´s the parts list: Parts List (BOM)

This kit contains all parts you need to build a fully functional effect pedal. Not included in the kit, but also good to have:

• Aluminium enclosure: select one from top
• 9V DC power supply
• 4 nice knobs for the potentiometer, up to 20mm diameter and for 6.35mm shafts
• Decal, transfer or transparent sheets for labeling

Documents:
Ladder to the Moon docs.
