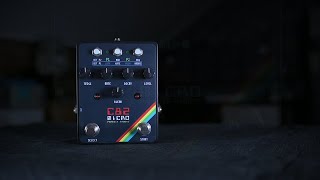

C82 Micro Bausatz

The C82 MICRO is the little sibling to the Console 84. It has a digital oscillator with 3 octave settings, a volume envelope (so that the notes can decay in a musical manner), 3 types of modulation and a pseudo random pattern generator that can play notes in 3 different scales. It can also latch and hold notes so that it's possible to play melodies over sustaining bass notes. The oscillator can be blended with a straight square wave fuzz or a one octave down CMOS output.

This kit is a creation by Parasitstudio.se in cooperation with Musikding.de. If you have any problem with the content of the kits like mising or wrong parts, please contact Musikding (Klaus) at kontakt@musikding.de. For any technical problem relating to building this project, please contact Fredrik at www.parasitstudio.se.

Here´s the parts list: Parts List (BOM)

This kit contains all parts you need to build a fully functional device. Not included in the kit, but also good to have:

• Aluminium enclosure: select one from top
• 9V DC power supply
• 5 nice knobs for the potentiometer, up to 19mm diameter and for 6.35mm shafts
• Decal, transfer or transparent sheets for labeling

Documents:
C82 Micro docs.
