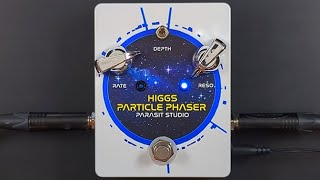

Higgs Particle Phaser kit

The Higgs Particle Phaser is a unique CMOS based phaser that has an ADC that turns the analog signal into a digital 1-bit stream and then uses shift registers to create the phase shifting.

The 3PDT board is included in the kit!

This kit is a creation by Parasitstudio.se in cooperation with Musikding.de. If you have any problem with the content of the kits like mising or wrong parts, please contact Musikding (Klaus) at kontakt@musikding.de. For any technical problem relating to building this project, please contact Fredrik at www.parasitstudio.se.

Here´s the parts list: Parts List (BOM)

This kit contains all parts you need to build a fully functional effect pedal. Not included in the kit, but also good to have:

• Aluminium enclosure: select one from top
• 9V DC power supply
• 2 nice knobs for the potentiometer, up to 28mm diameter and for 6.3mm shafts
• Decal, transfer or transparent sheets for labeling

Documents:
Higgs Particle Phaser docs.
