Description

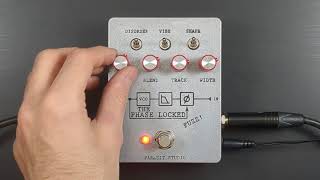

The Phase Locked Fuzz is a square wave fuzz / guitar synth with a ?discrete? phase locked loop oscillator with both sawtooth and squarewave outputs. It has a vibrato, pwm control, tracking control and a disorder mode for making fun chaotic sounds!
The 3PDT board is included in the kit!
This kit is a project by Parasitstudio.se in cooperation with Musikding.de. If you have any problem with the content of the kits like mising or wrong parts, please contact Musikding (Klaus) at kontakt@musikding.de. For any technical problem relating to building this project, please contact Fredrik at www.parasitstudio.se.
Here´s the parts list: Parts List (BOM)
This kit contains all parts you need to build a fully functional effect pedal. Not included in the kit, but also good to have:
- Aluminium enclosure: select one from top
- 9V DC power supply
- 4 nice knobs for the potentiometer, up to 18mm diameter and for 6.3mm shafts
- Decal, transfer or transparent sheets for labeling
Documents:
Phase Locked Fuzz docs.
Instrument: | Guitar Bass Synthesizer |
Effect-Type: | Fuzz Octave |
